Lester

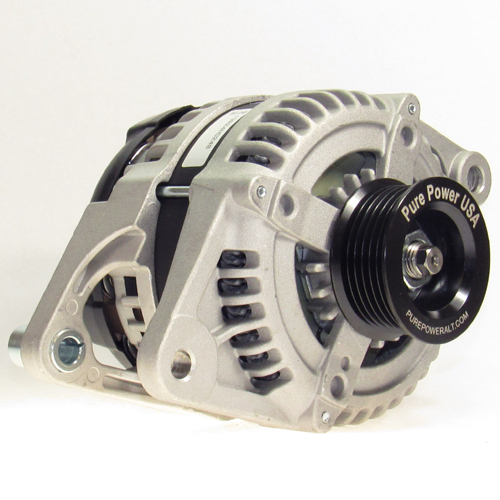

2000 Dodge Ram 1500 5.9L V8 360CID Alternator

170 Amp Custom High Output Alternator OEM Built in the USA

✓ In Stock
✓ Fast Shipping
✓ Free Tech Support
✓ Free 2Yrs Warranty
$426.00 $326.00

Standard, with Powder Coat Options

170 Amp
240 Amp
Powder CoatingPowder coating process delays shipping up to 4 business days
Black Flat Texture
Burnt Red Flat Texture
FDE-Flat Beige Texture
Gloss Bright Orange
Gloss Hot Yellow
Gloss Neon Green
Gloss Neon Yellow
Gloss Passion Pink
Gloss Passion Red
Gloss Playboy Blue
Gloss Savannah Blue
Gloss White
Satin Yama Blue
Super Chrome Plus

Custom BIG 3 Wire Kit 1/0 AWG
(Required for all High Output alternators)

Our Big 3 wire upgrade kit is a must upgrade when purchasing your new Pure Power high output alternator. It is important to understand that when upgrading from a stock alternator to a high output alternator your factory wiring harness becomes less efficient because it was not designed to handle 250 to 400 amps of current flow. By simply adding the Pure Power Big 3 wire kit in combination with your factory wire harness will allow your new high output alternator to produce its maximum amperage upon the vehicle demands.

What's Included:
4 ft of 1/0 Gauge Premium SGT Positive Cable
3 ft of 1/0 Gauge Premium SGT Negative Cable
30 in. of 1/0 Gauge Premium SGT Negative Cable
6 Pcs. 5/16 Ring Terminal
Machine crimped ends with weather resistant adhesive heat shrink tubing
Instruction Sheet

Big 3 wiring Kit Instructions


Pure Power Series

02580678

This 170 Amp Pure Power alternator is the perfect new upgrade. Not only is this a reliable OEM quality built alternator but it is designed to give you a 35% faster recovery rate than your old alternator which will increase the life of your battery.

Features
  • Installation Note:
    This unit comes equipped with a smaller alternator pulley, and we recommend using a ½ inch shorter drive belt for proper belt tension. For information and help to identify your current belt size and locating the ½ inch shorter belt size needed, refer to our Technical Notes, Reducing Your Vehicle's Belt Size | TAE (tucsonalternator.com). Our smaller drive pulley is not recommended for sustained use above 5,500 RPM engine speeds.
  • The highest charging output, at idle, in the industry
  • Amazing heat dissipation
  • Durable 6phase Hairpin stator technology
  • 12 50 amp avalanche diodes for durability
  • OEM SKF high heat bearings
  • OEM brushes and brush holder for extreme long life
  • Every alternator is endurance tested on the most advanced dyno tester in the industry, DV Electronics/Alt-98, to ensure the correct performance specs and durability.


Specs

Output Voltage
14.8
Stator configuration
6 Phase Hairpin
Amperage
170 AMPS
Pulley type
7 Groove Steel
Pulley Grooves
7
Rectifier
12 50 amp press fit diodes
Rectifier heatsink
Aluminum
Warranty
24 Months Repair Warranty



Performance


240 Amp
$359.00 each
