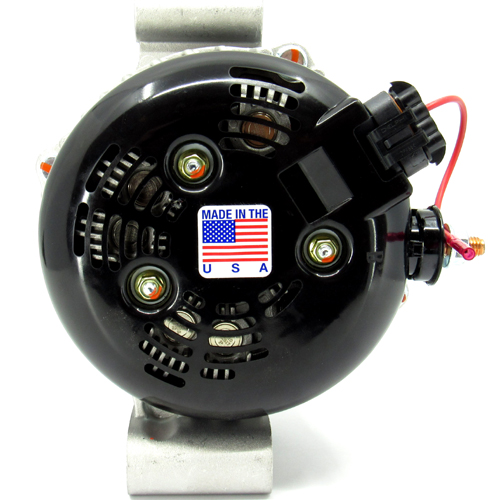

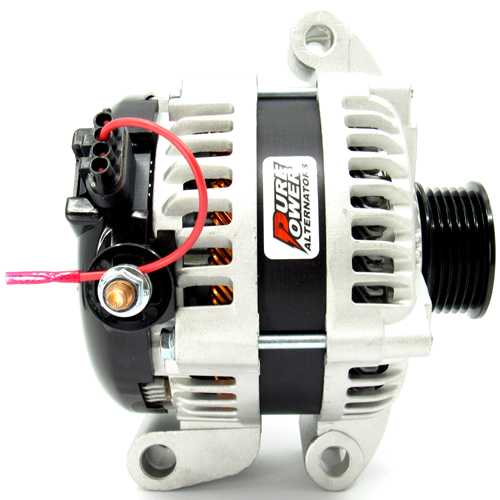

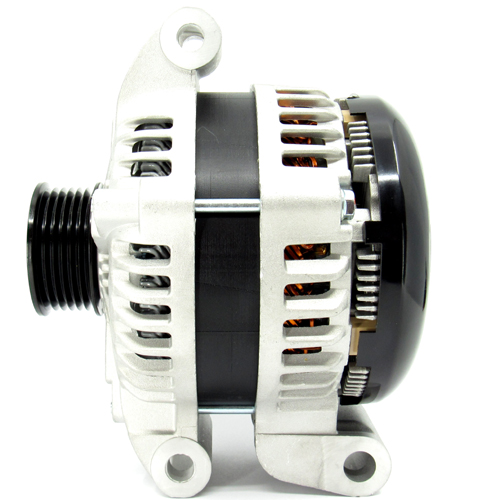

Lester FDPX5TD250IR
Lester FDPX5TD250IRa
Lester FDPX5TD250IRb
Lester FDPX5TD250IRc
Lester FDPX5TD250IR Lester FDPX5TD250IR(a) Lester FDPX5TD250IR(b) Lester FDPX5TD250IR(c)

T MOUNT Penntex PX2/PX5 Replacement 250 Amp High Output Alternator with Built in Regulator

✓ In Stock
✓ Fast Shipping
✓ Free Tech Support
✓ Free 2Yrs Warranty, Lifetime Available
$899.00 $559.00

Penntex PX5 series 250amp replacement Pure Power alternator.

Fitment: Replaces all Penntex PX5 series alternators.

Our 6 phase technology high output alternators are designed to charge and recover your battery extremely quick and efficient. So if you are just replacing your worn out factory alternator or you are looking to upgrade because you want more amperage to maintain your accessory demands our Pure Power brand High Output Penntex replacement alternators are made in the USA with quality parts to perform under the most extreme conditions.

Note: This alternator is supplied with its own internal regulator and will bypass the original onboard Penntex regulator which would no longer be used.

Replaces: PX2T3-200, PX2T3-5, PX2T5, PX2TF, PX2TF5, PX520T, PX520T12, PX520T6, PX520T6C, PX520TD, PX520TD12, PX520TD6, PX520TD6C, PX520TF, PX520TFD, PX525T, PX525T12, PX525T6, PX525T6C, PX525TD, PX525TD12, PX525TD6, PX525TD6C, PX525TF, PX525TFD, PX5T, PX5T200, PX5T200-12, PX5T200-6, PX5T200-6C, PX5T250, PX5T250-12, PX5T250-6, PX5T250-C6, PX5TD12-200, PX5TD12-250, PX5TD200, PX5TD250, PX220T, PX220T3, PX220T3-5, PX220T5, PX220TF, PX220TF5, PX2T, PX2T200, PX2T3

Must verify pulley grooves

Universal BIG 3 Wire Kit. 1/0 AWG - Premium Grade SGT Wire
(Required for all High Output alternators)

Our Big 3 wire upgrade kit is a must upgrade when purchasing your new Pure Power high output alternator. It is important to understand that when upgrading from a stock alternator to a high output alternator your factory wiring harness becomes less efficient because it was not designed to handle 250 to 400 amps of current flow. By simply adding the Pure Power Big 3 wire kit in combination with your factory wire harness will allow your new high output alternator to produce its maximum amperage upon the vehicle demands.

What's Included:
4 ft of 1/0 Guage SGT Positive Cable
3 ft of 1/0 Guage SGT Negative Cable
30 in. of 1/0 Guage SGT Negative Cable
6 Pcs. 5/16 Ring Terminal
Machine crimped ends with weather resistant adhesive heat shrink tubing
Instruction Sheet



See All Penntex units


Pure Power Series

02598503
Features
  • The highest charging output, at idle, in the industry
  • Amazing heat dissipation
  • Durable 6phase Hairpin stator technology
  • 12 70 amp avalanche diodes for durability
  • OEM SKF high heat bearings
  • OEM brushes and brush holder for extreme long life
  • Every alternator is endurance tested on the most advanced dyno tester in the industry, DV Electronics/Alt-98, to ensure the correct performance specs and durability.


Specs

Mounting type
Direct OEM Replacement
Output Voltage
EXTRNAL REGULATOR
Stator configuration
6 Phase Hairpin
Amperage
250 AMPS
Max amps hot
230
IDLE amps
190
IDLE amps hot
180
Pulley type
8 Groove Steel
Pulley Grooves
8
Rectifier
12 70 amp press fit diodes
Rectifier heatsink
Aluminum
Battery terminal size
8MM X 1.25 Copper
Warranty
24 Months Repair Warranty



Performance

CUSTOMER CARE
Industry leading 2 year warranty
World class customer service
BENEFITS OF JOINING THE PUREPOWER FAMILY:
ULTIMATE PERFORMANCE
Pure Power alternators aren’t just built to produce the maximum amperage, they’re built to give you the most amperage at idling speeds.
EASY DIRECT REPLACEMENT
Every Pure Power alternator is custom built to a direct fit.
SUPERIOR QUALITY
Using only the highest quality parts assures our customers their new Pure Power alternator is built to lasts a Lifetime
PURE POWER COMMITMENT
When you purchase your High Output Alternator, you join the Pure Power family. This family consists of car audio users, diesel owners, off roaders, along with our 5-star customer service team that is always here for you.
