Lester 8307ND400
Lester 8307ND400a
Lester 8307ND400b
Lester 8307ND400c
Lester 8307ND400 Lester 8307ND400(a) Lester 8307ND400(b) Lester 8307ND400(c)

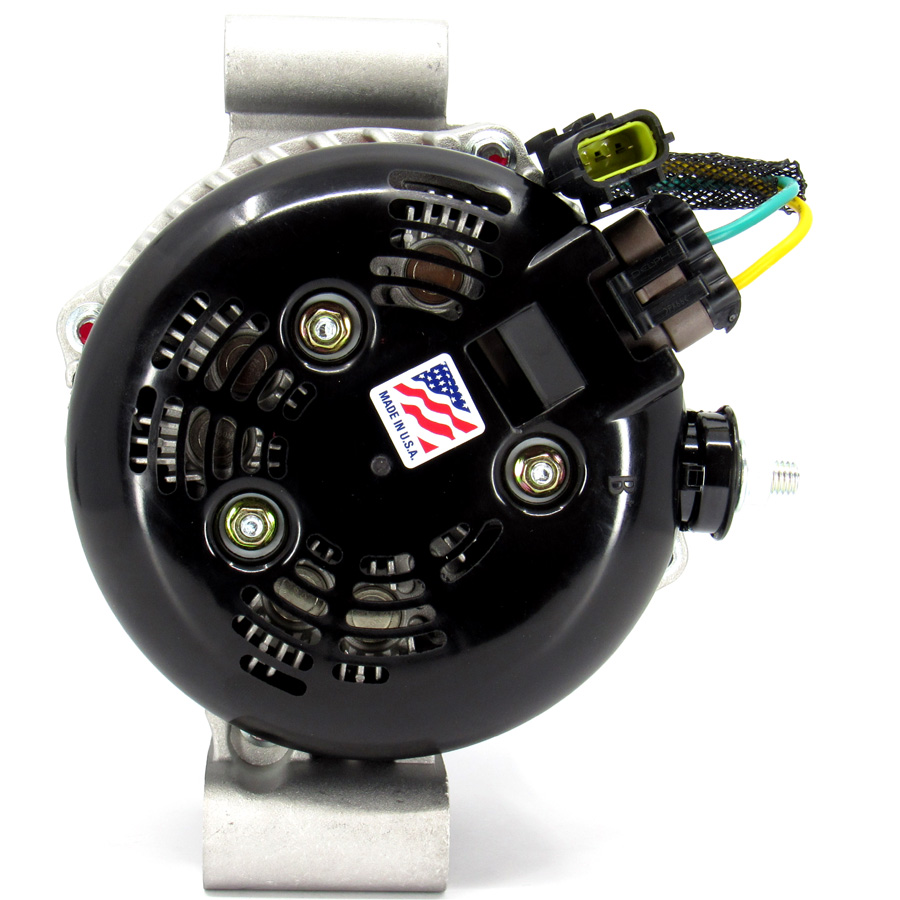

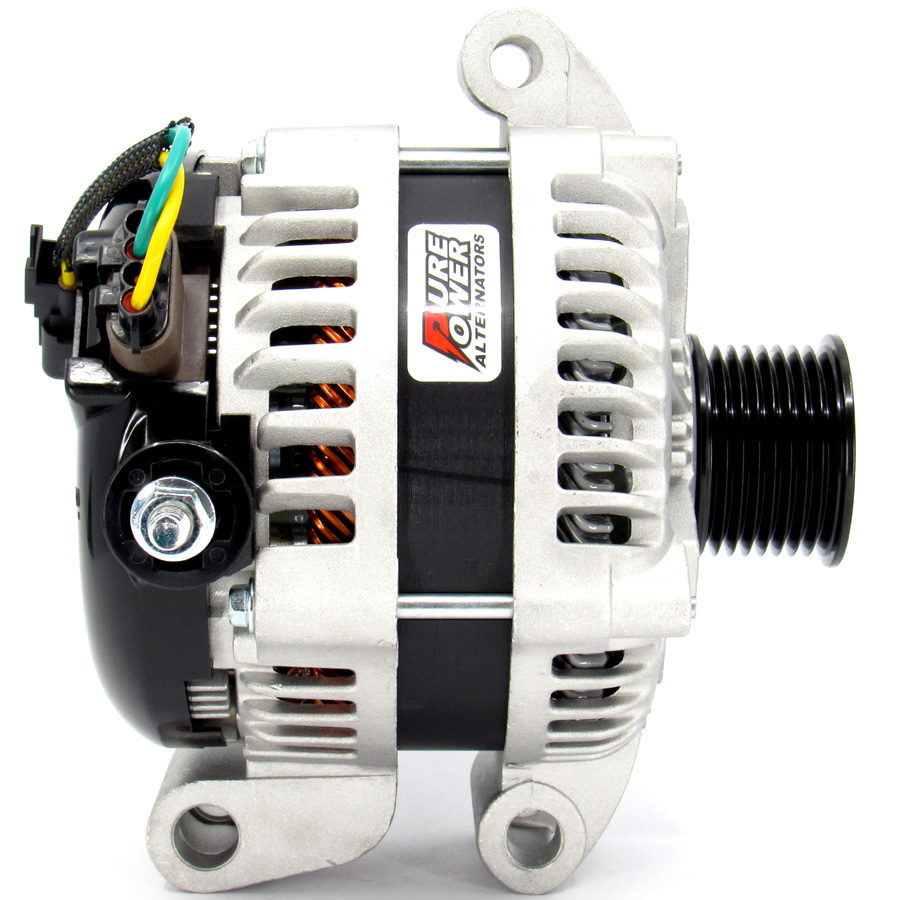

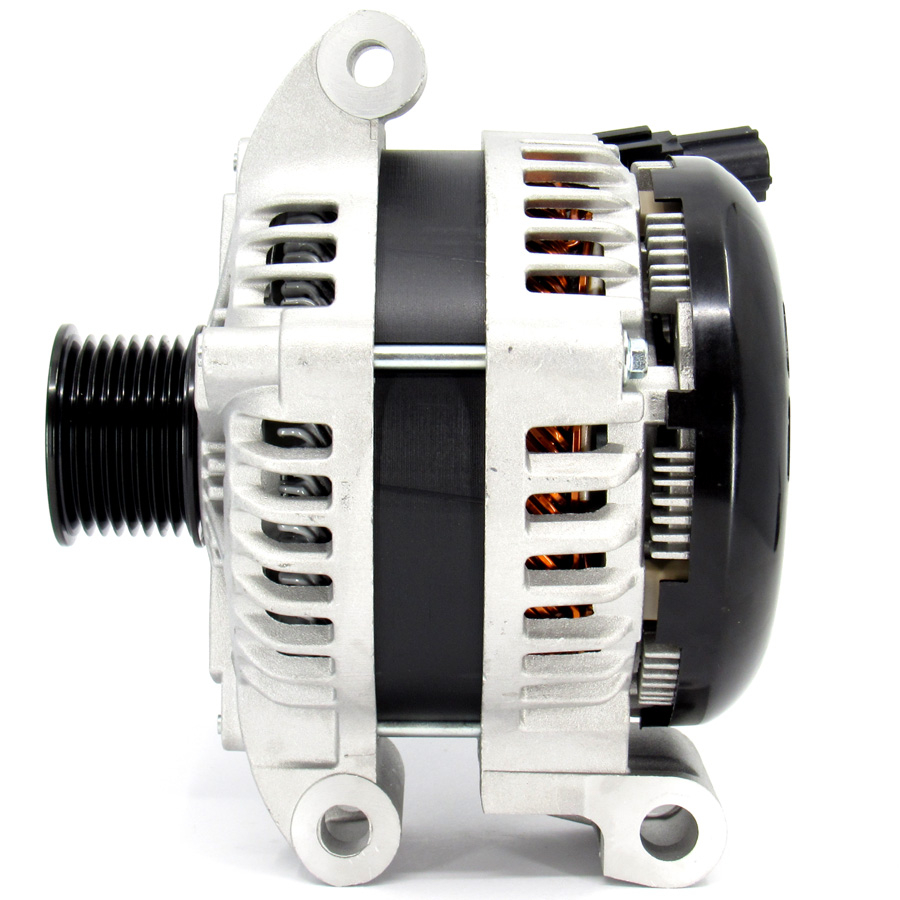

400AMP PurePower Hairpin High Output Alternator Ford Trucks 2003-2010

✓ In Stock
✓ Fast Shipping
✓ Free Tech Support
✓ Free 2Yrs Warranty, Lifetime Available
$699.00 $516.00

The 400 amp Pure Power alternator is an excellent step up with twice the charging power than your original alternator. Amazing output at low idle this gold standard Pure Power alternator will keep up with all your vehicle power demands.

Universal BIG 3 Wire Kit. 1/0 AWG - Premium Grade SGT Wire
(Required for all High Output alternators)

Our Big 3 wire upgrade kit is a must upgrade when purchasing your new Pure Power high output alternator. It is important to understand that when upgrading from a stock alternator to a high output alternator your factory wiring harness becomes less efficient because it was not designed to handle 250 to 400 amps of current flow. By simply adding the Pure Power Big 3 wire kit in combination with your factory wire harness will allow your new high output alternator to produce its maximum amperage upon the vehicle demands.

What's Included:
4 ft of 1/0 Guage SGT Positive Cable
3 ft of 1/0 Guage SGT Negative Cable
30 in. of 1/0 Guage SGT Negative Cable
6 Pcs. 5/16 Ring Terminal
Machine crimped ends with weather resistant adhesive heat shrink tubing
Instruction Sheet

Powder CoatingPowder coating process delays shipping up to 4 business days
Black Flat Texture
Burnt Red Flat Texture
FDE-Flat Beige Texture
Gloss Bright Orange
Gloss Hot Yellow
Gloss Neon Green
Gloss Neon Yellow
Gloss Passion Pink
Gloss Passion Red
Gloss Playboy Blue
Gloss Savannah Blue
Gloss White
Satin Yama Blue
Super Chrome Plus

Pure Power Series

02580530
Features
  • The highest charging output, at idle, in the industry
  • Amazing heat dissipation
  • Durable 6phase Hairpin stator technology
  • 12 70 amp avalanche diodes for durability
  • OEM SKF high heat bearings
  • OEM brushes and brush holder for extreme long life
  • Every alternator is endurance tested on the most advanced dyno tester in the industry, DV Electronics/Alt-98, to ensure the correct performance specs and durability.


Specs

Mounting type
Direct OEM Replacement
Output Voltage
14.8
Stator configuration
6 Phase Hairpin
Amperage
400
Max amps hot
365
IDLE amps
240
IDLE amps hot
230
Pulley type
8 Groove Steel
Pulley Grooves
8
Rectifier
12 70 amp press fit diodes
Rectifier heatsink
Aluminum
Battery terminal size
8MM X 1.25 Copper
Warranty
24 Months Repair Warranty
